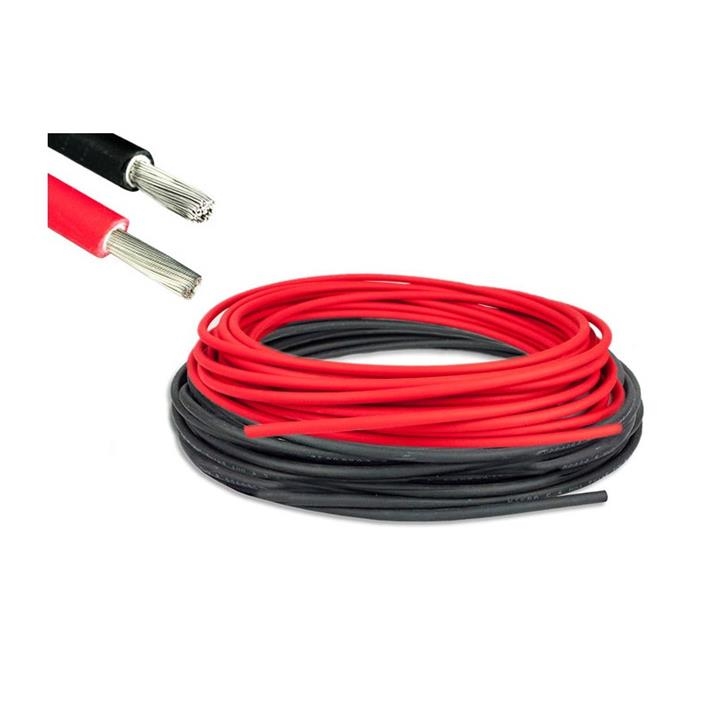

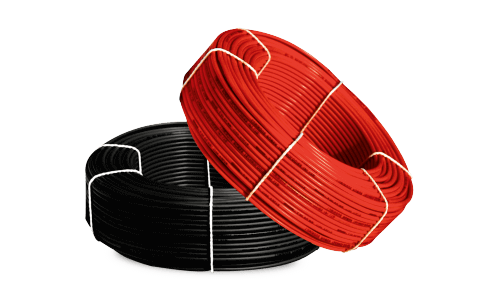

Model: PV1-F
nominal cross-section: 4mm2
Current Rating: 55A
Number of cores: NO 1.
Certification: TUV
Conductor: copper wire structure NO./mm 56 / 0.30
Conductor Stranding outer diameter: 2.60mm
The minimum insulation wall thickness: 0.5mm
Sheath minimum wall thickness: 0.5mm
finished wire outside diameter: 6.1 ± 0.1mm
conductor resistance (20 ℃): ≤5.09Ω / km
Test voltage kV / min: 6.5 / 5 No breakdown
Rated temperature: -40 ~ + 90 ℃
maximum conductor temperature: + 120 ℃
Reference allows short-circuit temperature: 200 ℃ 5S
life:> 25 years (-40 ~ + 90 ℃)
Rated voltage: DC: 1.8kv AC U. / U: 0.6 / 1kv
Working temperature ℃: -40 ~ + 90
Operating voltage AC / DC (KV): 0.6 ~ 1.0 / 1.8
Weather resistance: UV
flame: a single vertical combustion (IEC60332-1)
sunlight resistant test: HD605 / A1
finished cable Ozone Test: EN50396
smoke density: IEC61034, EN50268-2
halogen acid release: IEC670754-1 EN50267-2-1
